Single-Band (2.4 GHz) Embedded Wi-Fi b/g/n module with Integrated antenna
WE935B00

Overview

WE935B00 module from Wi2Wi's EM series is a best in class single-band (2.4GHz) high performance embedded Wi-Fi module. This highly integrated plug and play, embedded wifi module with chip antenna and MHF4 IPEX connector includes dedicated microcontroller, MAC, baseband, RF transceiver, power amplifier, crystal, Tx/Rx switch, filter and OTP memory for calibration data and MAC address. WE935B00 (serial to wifi module) is a complete wireless subsystem in a small form factor, featuring full 802.11 b/g/n capabilities with embedded Wireless LAN (WLAN) stack, supplicant and TCP/IP stack. By completely off-loading the external Microcontroller (MCU) from wireless and Networking Stack activities, user can dedicate the external host for application development and significantly reduce their time to market and R&D cost. This WLAN module supports UART, SPI and USB* host interfaces and comes in various operating temperatures and certified to FCC, CE and IC.




Single-Band embedded Wi-Fi module



Features

  • Small footprint: 15 mm x 16.5 mm x 1.86 mm
  • Compliant to IEEE 802.11b/g/n Wi-fi, 1x1 SISO
  • 20 MHz Channel Bandwidth
  • UART, SPI & USB* Host Interfaces
  • UART hardware flow control
  • Supports Station Mode, Access Point Mode and Con-current (simultaneous AP + Station) Mode
  • Supports Open, WPA/WPA2-PSK & WEP (WEP in Station mode only)
  • Supports 4 Stations/Clients in AP Mode
  • Supports 10 TCP/UDP sockets which includes 2 SSL Sockets, 1 dedicated Webserver and 1 dedicated HTTP Client
  • Onboard chip Antenna + MHF4 IPEX Connector
  • Support for IEEE Power-Save Mode
  • Host Controlled Sleep wake pins
  • Support for Antenna Diversity
  • Maximum transmit power up to 18 dBm
  • Receive Sensitivity -97 dBm
  • Single power supply operation, 3.3V DC
  • Available in industrial (-40℃ to +85℃), extended (-30℃ to +85℃) and commercial (0℃ to +70℃) operating temperature variants




Block Diagram
single band embedded wifi module block diagram

Certifications
Certification Test is Ongoing
  • FCC
  • IC
  • CE
Applications
  • IoT (Internet of Things)
  • IIoT (Industrial Internet of Things)
  • M2M (Machine-to-Machine)
  • Serial-to-Wifi
  • Wireless Consumer Appliances
  • Wi-Fi enabled security cameras
  • Automotive aftermarket
  • Warehousing and logistics handhelds
  • Medical monitoring equipment
  • Industrial Sensor controller
  • Internet enabled consumer devices
  • Smart homes
  • Smart energy
  • Data logger



Specifications

Wi-Fi IEEE 802.11: b/g/n, Single-Band (2.4GHz)
Available Channels: Channels 1-14
Channel Bandwidth: 20 MHz
802.11b Data Rates: DSSS Modulation: 1 and 2 Mbps
CCK Modulation: 5.5 and 11 Mbps
802.11g Data Rates: OFDM Modulation: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps
802.11n Data Rates: MCS0-MCS7 (up to 72.2 Mbps)
Other 802.11 Features: 802.11d/e/h/i/k/r/w
Maximum Transmit Power: Up to 18 dBm
Receive Sensitivity: -97 dBm
Host Interfaces: UART, SPI, USB*
Host Interface Selection: Host selection through host configuration pins (hardware)


Kits

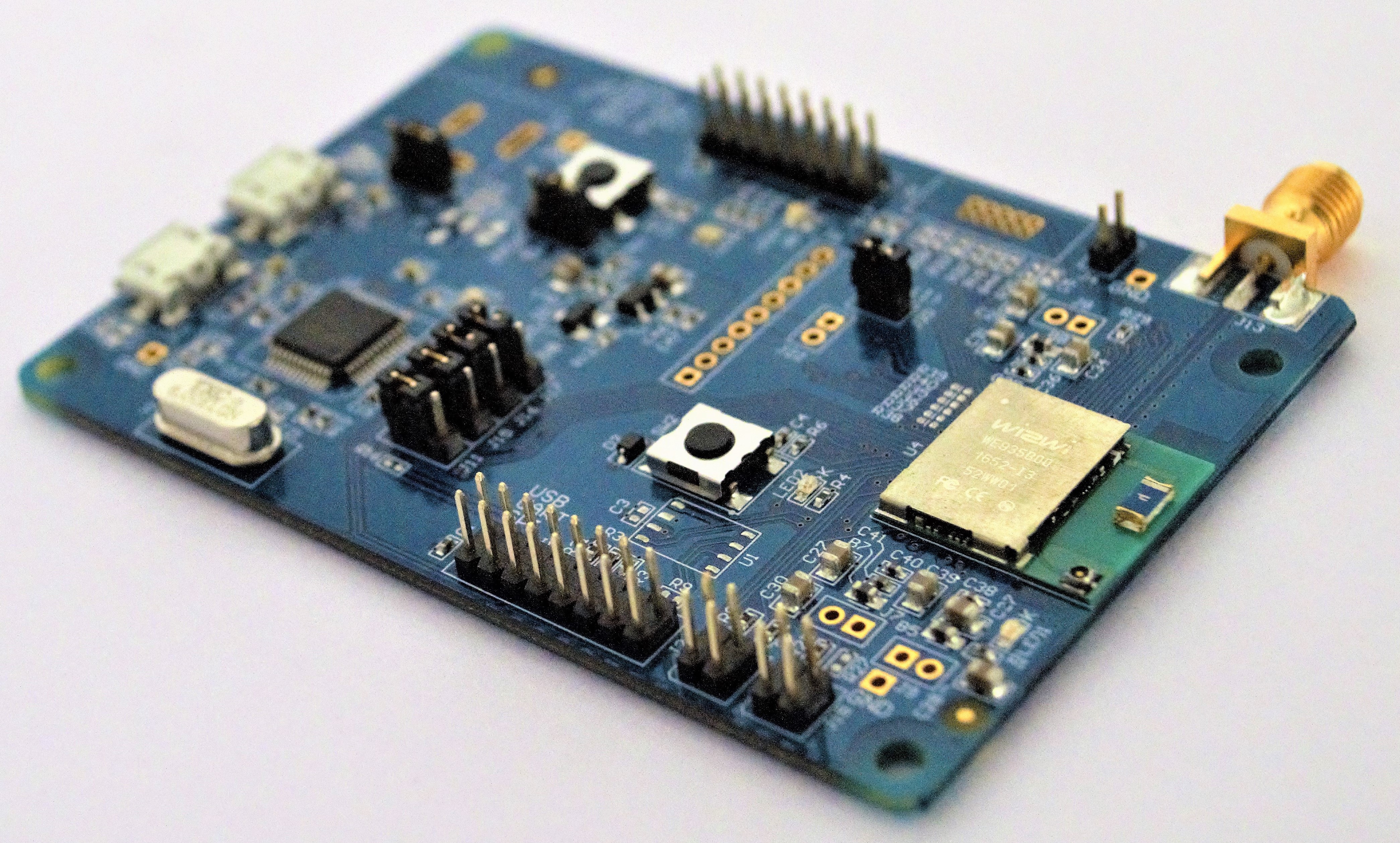

Evaluation Kit



Part Ordering: WE935B00-EVK3
The WE935B00 Evaluation kit is a Wi-Fi evaluation platform for the WE935B00 Single-Band (802.11bgn) WLAN module. This WE935B00 2.4GHz wireless LAN module along with other supporting passive components is mounted on the Evaluation board which can be connected to various Microcontroller development platforms or PC/Laptops. This same 2.4 Gig module evaluation board is being used for performing FCC, CE and IC certification and the same can be used to perform the RF tests for any regional certifications like TELEC, KCC, Anatel, etc. The Kit comes with wifi bgn module Evaluation Board, a Micro USB to USB cable and a 2.4 GHz Rubber Duck Antenna with MHF4 IPEX connector cable. A complete software driver support and all related collaterals will help the user to evaluate this embedded Wi-Fi module and integrate into their end system with substantial reduction in their RND efforts, resources, budget and supports faster time to market.



Drivers & Documentation

Particulars File Version Size Last Updated
Product Brief WE935B00_Product_Brief.pdf 1.1 907 KB 05/02/2018
Data Sheet WE935B00_Datasheet.pdf 1.0 2.03 MB 8/22/2017
Software User Guide WE935B00_Software_User_Guide_Rev1.0.pdf 1.0 3.39 MB 9/19/2017
Hardware Integration Guide WE935B00-Hardware-Integration-Guide-Rev1.0.pdf 1.0 2.03 MB 9/19/2017



Ordering

Part Order Number Description Antenna Operating Temperature Packaging Type Buy from Distributor
WE935B00-I3QT Industrial Grade Module Chip antenna + MHF4 IPEX connector (-40°C to +85°C) Tray Buy Now
WE935B00-E3QT Extended Grade Module Chip antenna + MHF4 IPEX connector (-30°C to +85°C) Tray Buy Now
WE935B00-C3QT Commercial Grade Module Chip antenna + MHF4 IPEX connector (0°C to +70°C) Tray Buy Now
WE935B00-I3QR Industrial Grade Module Chip antenna + MHF4 IPEX connector (-40°C to +85°C) Reel Buy Now
WE935B00-E3QR Extended Grade Module Chip antenna + MHF4 IPEX connector (-30°C to +85°C) Reel Buy Now
WE935B00-C3QR Commercial Grade Module Chip antenna + MHF4 IPEX connector (0°C to +70°C) Reel Buy Now
WE935B00-EVK3 WE935B00-I3 Module on Evaluation Kit Chip antenna + Rubber Duck with MHF4 IPEX connector cable (-40°C to +85°C) Kit Buy Now
* - USB interface support will be provided on request basis and is not available with general firmware.
