PDI’s expansive filter product offering serves nearly every application and performance level, with Avionics-grade reliability. PDI’s philosophy of developing standard design platforms that can be easily customized to meet the Application Specific demands allows customers to cost effectively optimize their overall system performance. PDI has the solution and technical resource to make customer’s designs perform at the highest level.
Request FormPart Number | Image | Package | Frequency Range | Dimensions | Spec File | Features |

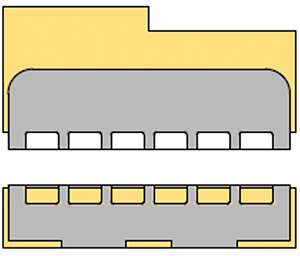

FTR-81050 |  | SMD Ceramic Resonator Diplexer | L1 = 1575.4 MHz L2 = 1227.6 MHz | 0.913Lx0.433Wx0.181H (in.) 23.2L x 11.0W x 4.60H (mm) |  | GPS dual band antenna splitter |
FTR-81051 |  | SMD Ceramic Resonator Band Pass Filter | 1560.0 MHz to 1590.0 MHz | 0.591Lx0.303Wx0.167H (in.) 15.0L x 7.7W x 4.25H (mm) | | GPS band pass filter for the L1 band |
FTR-81052 |  | SMD Ceramic Resonator Band Pass Filter | 1212.0 MHz to 1242.0 MHz | 0.591Lx0.402Wx0.167H (in.) 15.0L x 10.2W x 4.25H (mm) | | GPS band pass filter for the L2 band |
FTR-81053 | | SMD Ceramic Resonator Band Pass Filter | 1212.6 MHz to 1242.6 MHz | 0.591Lx0.386Wx0.167H (in.) 15.0L x 9.8W x 4.25H (mm) | | GPS band pass filter for the L2 band |
FTR-81054 | | SMD Ceramic Resonator Band Pass Filter | 1560.42 MHz to 1590.42 MHz | 0.591Lx0.303Wx0.167H (in.) 15.0L x 7.7W x 4.25H (mm) | | GPS band pass filter for the L1 band |
FTR-81055 | | SMD Ceramic Resonator Diplexer | L1 = 1575.2 MHz L2 = 1227.6 MHz | 1.083Lx0.390Wx0.224H (in.) 27.5L x 9.9W x5.7H (mm) | | GPS dual band antenna splitter |
