PDI’s filter product offering serves nearly every application and performance level, with Avionics-grade reliability. PDI’s philosophy of developing standard design platforms that can be easily customized to meet the Application Specific demands allows customers to cost effectively optimize their overall system performance. PDI has the solution and technical resource to make customer’s designs perform at the highest level.
Request FormFilter Type | Image | Frequency Range | Percentage Brandwidth | Return Loss | Input Power | Spec File | Features |
SAW Filter |  | 800 MHz to 2400 MHz | 0.3% to 35% | 10dB min | 10mW max |  | PCS/LTE, ISM, GPS |
CERAMIC Filter |  | 500 MHz to 2400 MHz | 0.1% to 10% | 15dB min | 1W | | ADS-B, GPS |

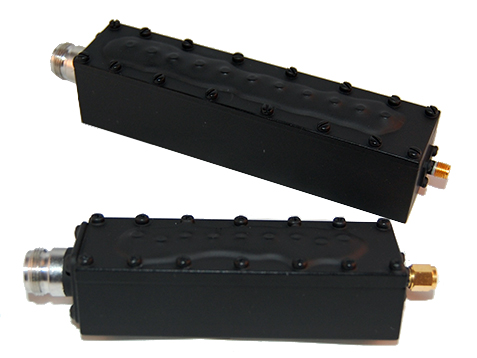

Cavity Filter |  | 400 MHz to 20 GHz | .5 to 60% | 14dB min | 10W | | RADAR and POWER Filter |

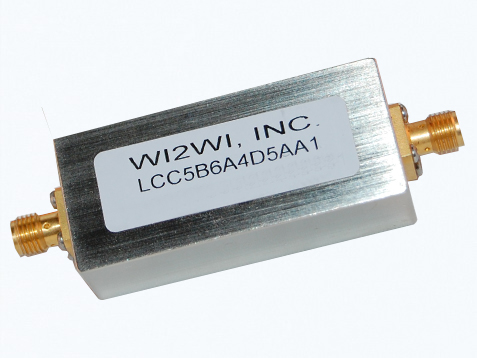

LC Filter |  | 500 kHz to 3.5 GHz | 1 to 100% | 14dB min | 1W | | Low pass, High pass, Band pass, band stop |
