WM828CC6
WiFi 802.11 acbgn + BT 4.2 (Smart Ready) Module with MHF4 IPEX connector

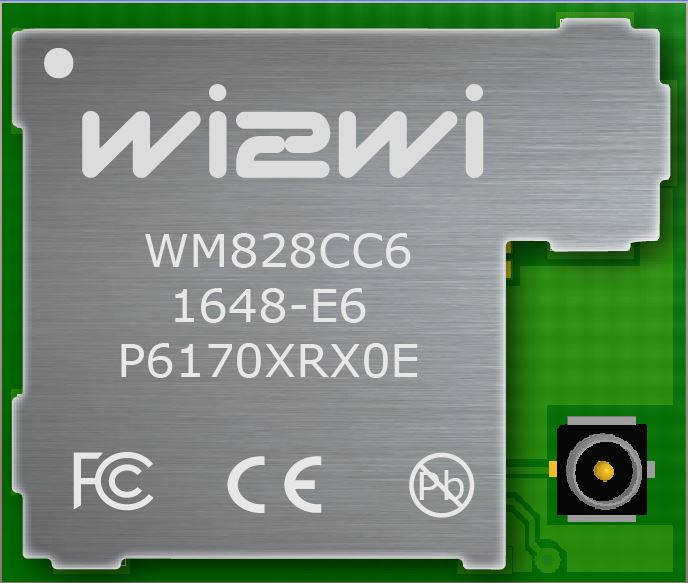

WM828CC6 from Wi2Wi’s Maximum Performance series is a Hosted Dual-Band Wi-Fi (802.11 ac/a/b/g/n) and Bluetooth 4.2/BLE (Dual-Mode) Multi Protocol, Combo Module with integrated MHF4 IPEX connector. This Wifi plus Bluetooth co-ex module is a highly integrated subsystem that includes integrated MAC, baseband, RF front-end, PA, crystal, switch, filter and OTP memory for calibration data and MAC address storage and offers High speed SDIO 3.0 host interface for easy connection to all leading 32 bit processors running Linux operating systems. The ultra-small form factor Multi-Band module, WM828CC6 gives Industry’s Best in class performance for very high throughput (VHT), high transmit (Tx) power, excellent receive (Rx) sensitivity. This ultra-low power Wi-fi + BT combo module supports deep sleep and standby modes for low power operations. The integrated Bluetooth 4.2 with LE specifications enables the new ecosystem of low energy Bluetooth Smart devices which can be tethered to the Smartphones and other consumer devices for new and emerging applications. This Combo Module is FCC, CE and IC certified and comes in extended temperature grade; -30°C to +85°C.
Request Form OrderingFeatures
- Ultra-Small WiFi+BT+BLE, multiprotocol module: 13 mm x 11 mm x 1.86 mm
- IEEE 802.11 ac/a/b/g/n Dual-Band Wi-Fi
- 20/40/80 MHz Channel Bandwidth
- Very high throughput up to 300 Mbps
- Support for Station/Client Mode, Access Point Mode, Wi-Fi Direct Mode and Simultaneous Station and Access point mode
- Maximum transmit power up to 18 dBm
- Single Power Supply 3.3V
- SDIO can operate at 1.8V /3.3V operation
- Drivers available for Linux
- Bluetooth 4.2, BLE (Dual-Mode/Smart-Ready)
- Fully integrated co-existence solution
- Support for SDIO host interfaces
- Compact, robust design for easy integration
- Optimized RF and electrical design for excellent performance
- Supports Extended Operating temperature range (-30°C to +85°C)

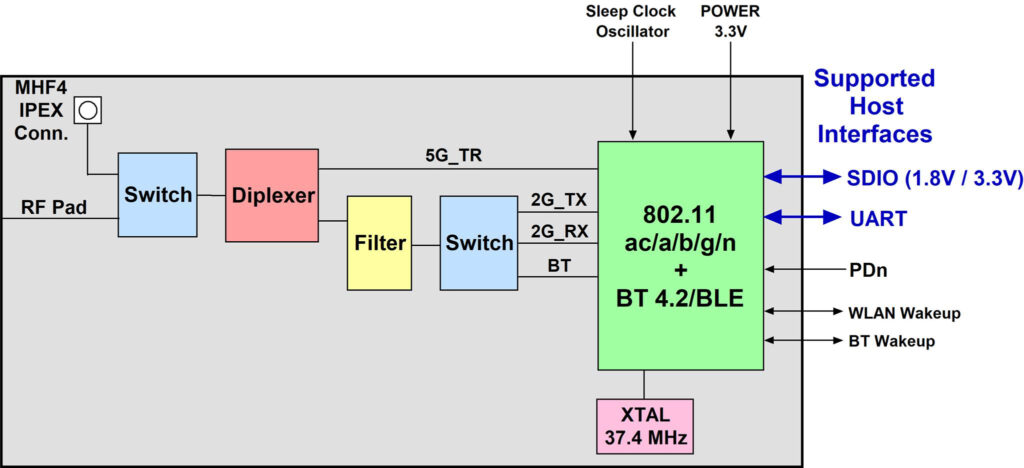

Block Diagram
Certifications
- FCC
- IC
- CE
Content
Content
Specifications
ac/a/b/g/n, Dual-Band(2.4, 5 GHz)
Available Channels:
2.4 GHz: Channels 1-13
5 GHz: Channels 36-155
Channel Bandwidth:
20/40/80 MHz
802.11b Data Rates:
DSSS Modulation: 1 and 2 Mbps
CCK Modulation: 5.5 and 11 Mbps
802.11g Data Rates:
OFDM Modulation: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps
802.11ac/n Data Rates:
up to 86.7 Mbps for 20 MHz channel
up to 200 Mbps for 40 MHz channel
up to 433 Mbps for 80 MHz channel
802.11d/e/h/I/k/r/u/v/w
Bluetooth Version:
4.2, Classic (BR/EDR) + Low Energy
Bluetooth Data Rates:
1Mbps: GFSK Modulation (BR)
2 Mbps: 4-DQPSK Modulation (EDR)
3 Mbps: 8-DQPSK Modulation (EDR)
MaximumTransmit Power:
Wi-Fi: 18 dBm
Bluetooth BR: 10 dBm
Bluetooth EDR: 8 dBm
Bluetooth LE: 10 dBm
Receive Sensitivity:
Wi-Fi: -98 dBm
Bluetooth EDR: -93 dBm
Bluetooth LE: -90 dBm
Antennas & Connectors
Antenna

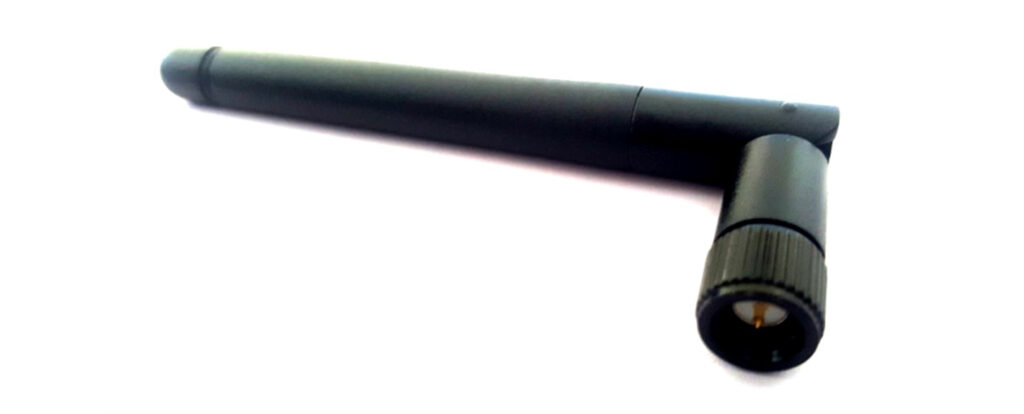

WADB-2458-23-SMAM is dual-band, omni-directional, multi-position, dipole antenna with an SMA Plug (SMA Male port).
Part Ordering
Download Datasheet
Connector Cable

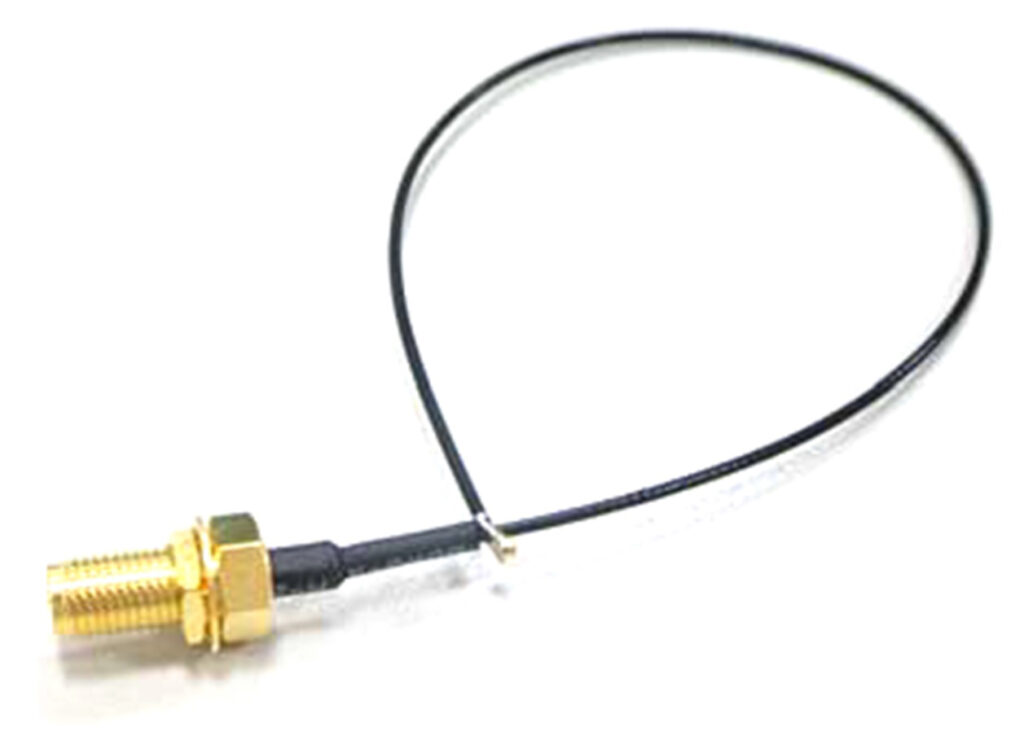

WACC-MHF4-SMAF-100-113 is an antenna connector cable with a SMA Female port on one end and a MHF4IPEX (HSC compliant) Female port on the other end.
Part OrderingKits
Evaluation Kit

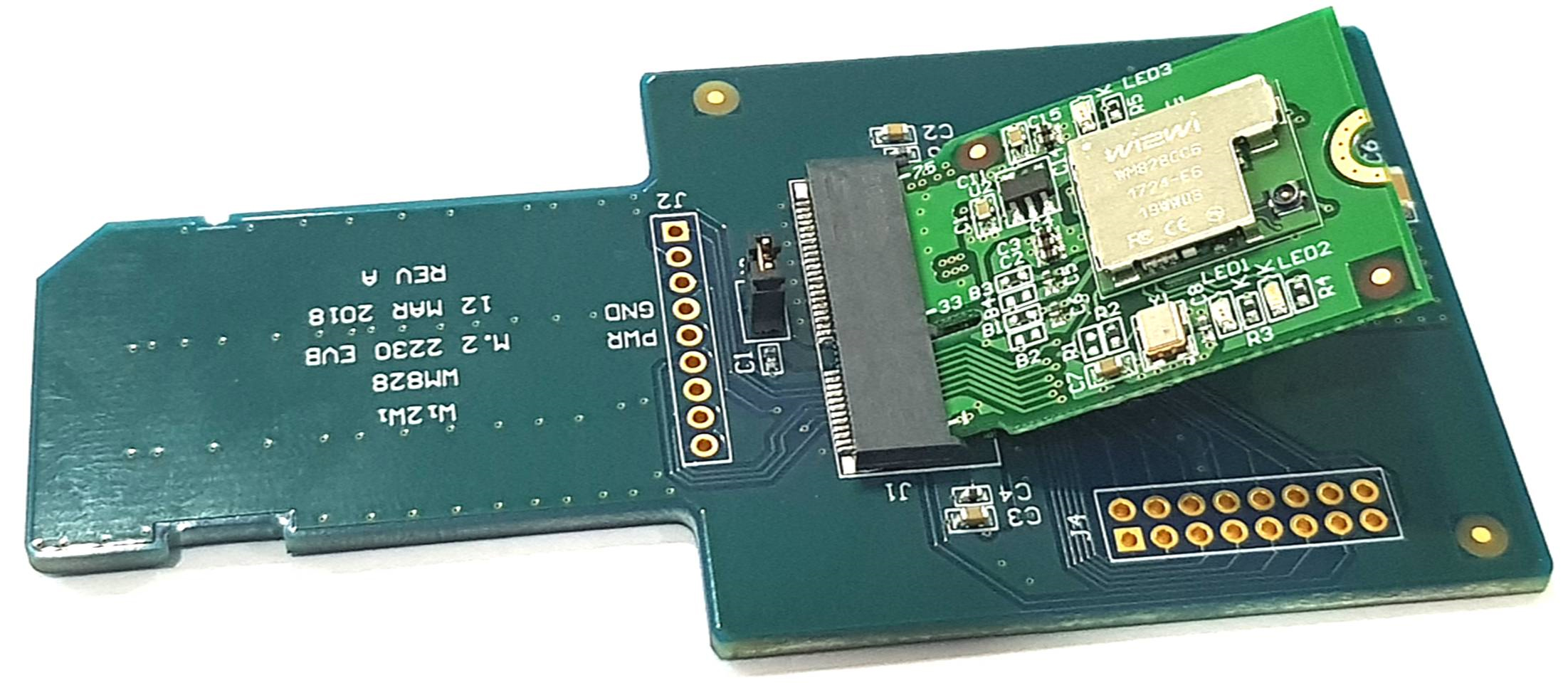

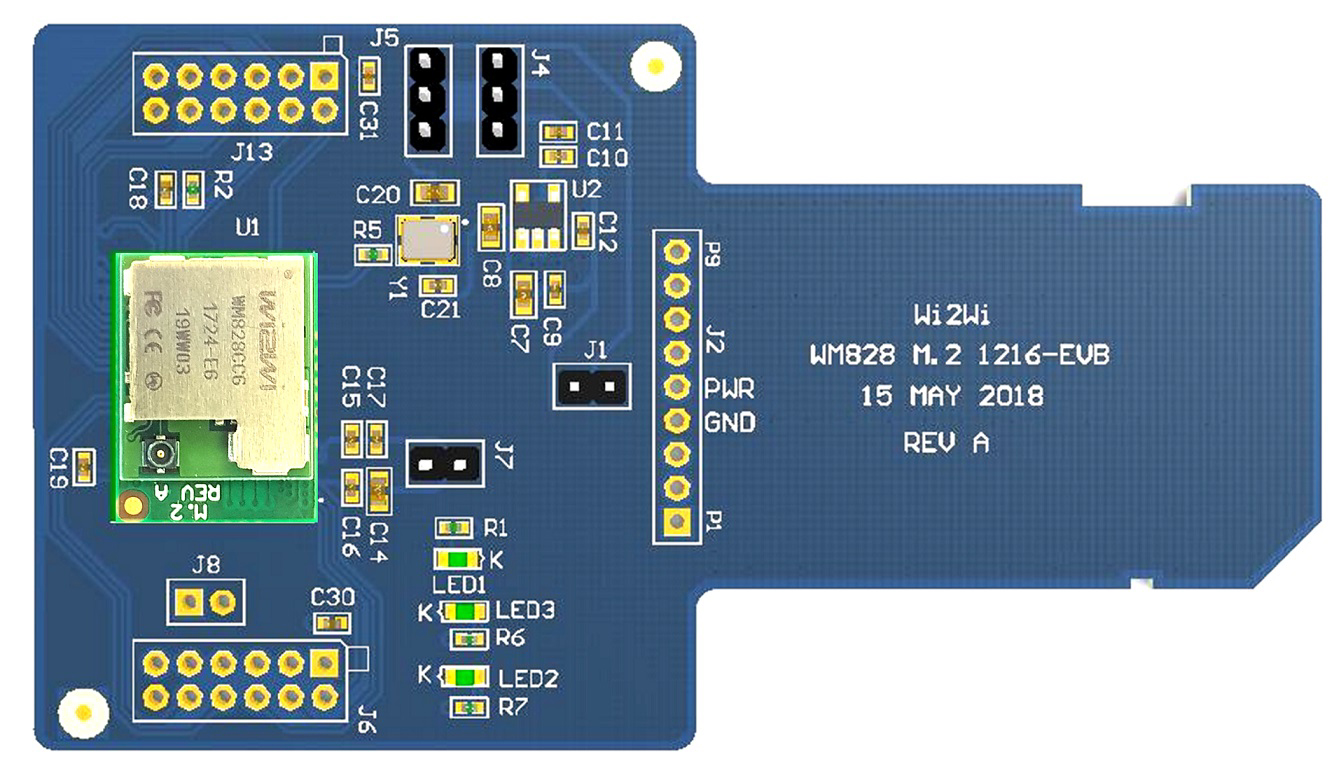

The WM828CC6 Evaluation kit is a Wi-Fi plus BT & BLE combo evaluation platform for the WM828CC6 Dual-Band (802.11acabgn) WLAN + BT4.2 (BLE) module. This WM828CC6 wireless LAN + Bluetooth classic & Bluetooth Low Energry Multi-band module along with other supporting passive components is mounted on the Evaluation board which is designed as SD card adapter to directly insert into various Microprocessor development platforms or Laptops without any extra connectors. This Multi-Radio module evaluation board was used for performing FCC, CE and IC certification and the same can be used to perform the RF tests for any regional certifications like TELEC, KCC, Anatel, etc. The Kit comes with Multi-Protocol wifi+BT module Evaluation Board, a Micro USB to USB cable and a 2.4 & 5 GHz Rubber Duck Antenna with MHF4 IPEX connector cable. A complete software driver support for Linux and all related collaterals will help the user to evaluate this hosted Wi-Fi module and integrate into their end system with substantial reduction in their RND efforts, resources, budget and supports faster time to market.
Development Kit

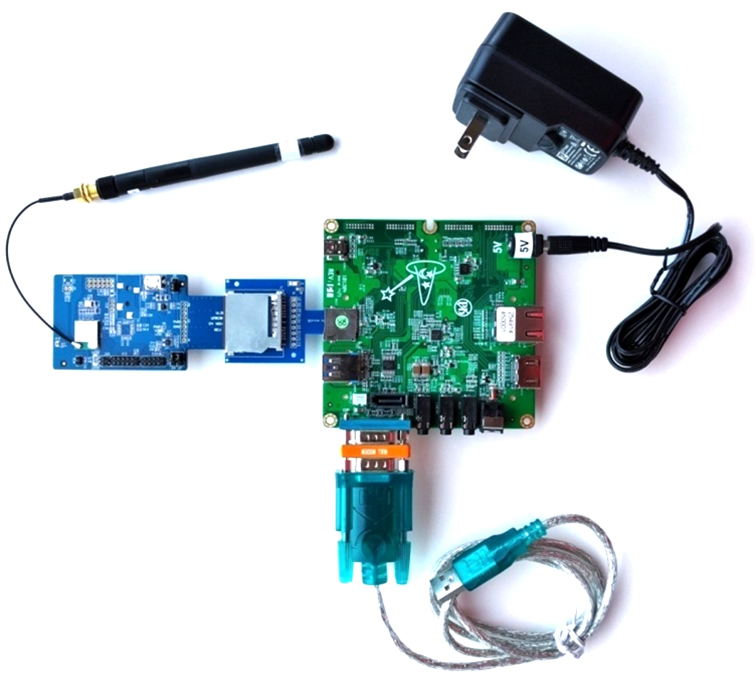

The WM828CC6 Development kit (WM828CC6-DVK6) is a plug and play system. It enables customer to evaluate, integrate and develop software for their end system. The Kit comes with WM828CC6 Evaluation board, i.MX6 development platform, all necessary accessories and tools. The related collateral explains one click demo program and other sample programs which customer can leverage to their end applications.
